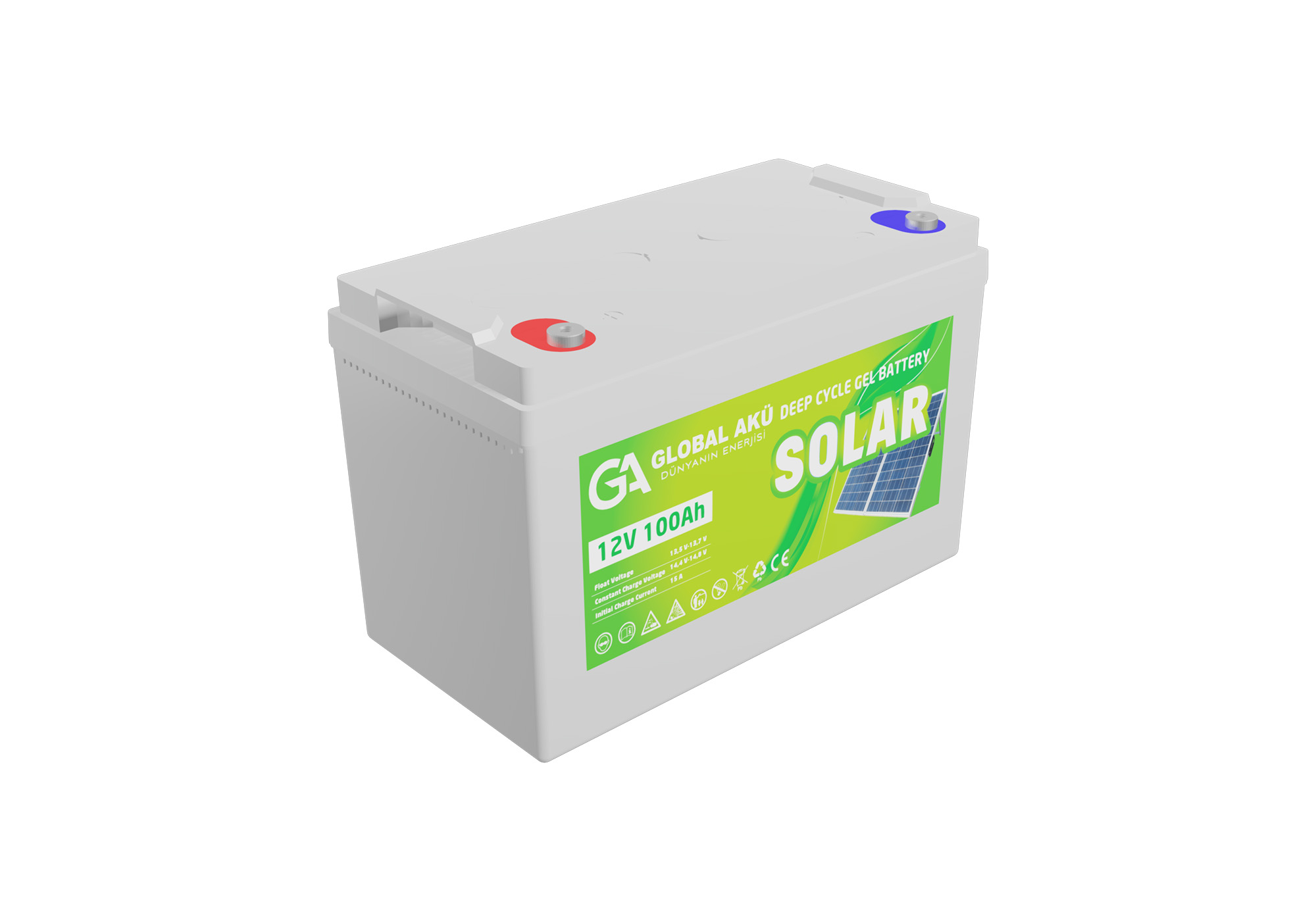

12V 100 AH DERİN DÖNGÜ SOLAR JEL AKÜ

Nominal Voltage	12V
Rated Capacity	100Ah (C20) @25°C Ufinal: 10,50 V
Typical Weight	31 kg ± 1kg
Terminal	M8 Female
Recommended Operation Temperature	15°C to 30°C
Maximum Operation Temperature	50°C
Storage Temperature	-20°C to 40°C
Float Voltage	2,27 V/cell @ 25°C
Equalizing Voltage	2,35 V/cell @ 25°C
Cycle Service Voltage	2,40 V/cell @ 25°C
Recommended Maximum Charging Current	15 A
Self Discharge	%8-9 after 90 days of storage @ 25°C
Recommended Terminal Hardware Torque	9±1 Nm
Lid and Container Material	ABS UL94 HB (V0 optional)
Outer Dimensions (L x W x H1 x H2) mm	331 x 173 x 217 x 220

Robust Design
Ca-Sn Lead Alloy for Grids
+10 Years of life expectancy under suitable conditions
Special positive and negative active mass supports long life for Solar Application
Ultra pure electrolyte supports high storage time and low self discharge
Low Calcium alloys supports corrosion resistance & long life
%100 fine fiberglass AGM separator with gelled electrolyte
Large surface area plates for high current supply
Special middle lug design positive and negative plates
High security and reliability, strong ABS container & lid
Maintenance free, no water addition
Safety valves and high recombination efficiency
Non Spillable VRLA Battery Technologhy
Recombination Technologhy with Gelled Electrolyte
